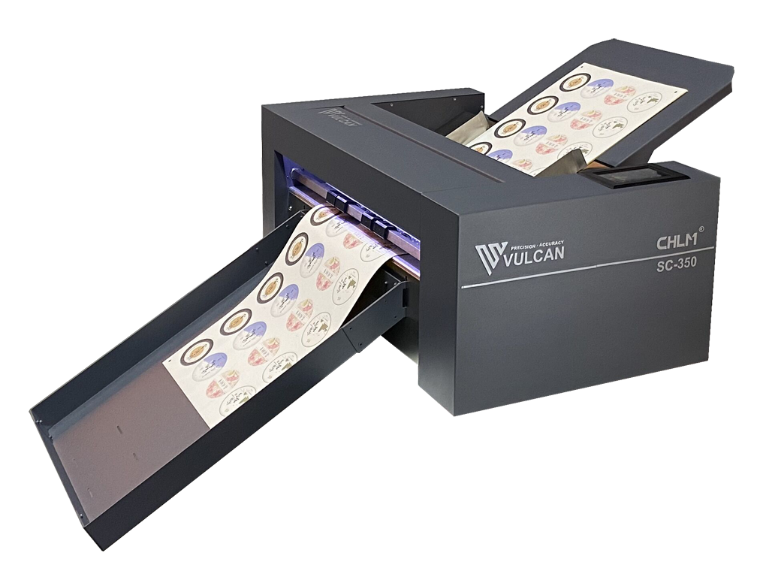

Sheet Cutting Machine – SC 350
The Vulcan SC-350 Sheet cutting machine is ideal for light to medium production and design samples.
Perfect for small to medium production just as for sample production packaging labels, hobbies, the advertising industry and else.
- QR code
- Kiss cut
Main features
Specification
| Item | SC-350 |
| Configuration | Automatic feeding sheet cutter |
| Media size | Width:185 to 350mm. Length:150 to 500mm A4,A3,SRA3,A3+ |
| Maximum cutting speed | 1200 mm/s (10 to 1200 mm/s ) |
| Max force | 400g |
| Minimum character size | Approx. 5 mm square |
| Sheet weight | 350g/m² |
| Feeding time | 2 seconds |
| Machincial Resolution | 0.01254 mm |
| Standard interfaces | USB2.0 (Full Speed) / U-Flash / Ethernet |
| Command sets | HP-GL |
| Operating screen | 4.3-inch touch LCD |
| Power supply | 100 to 240 V AC, 50/60 Hz (Auto switching) |
| Power consumption | 60W |
| Operating environment | Temperature: 10 to 35 degree, Humidity: 35 to 75% RH (non-condensing) |
| External Dimensions(mm)
(W × D × H) |
Exit tray : 406 x 462 x 186 mm Exit tray+Cutter+Media support tray:1109 x 747 x 594 mm |
| Weight | 33kg/36kg |
| Packing size | 870 x 550 x 580 MM / 0.28CBM |
| Warranty | 2 years |

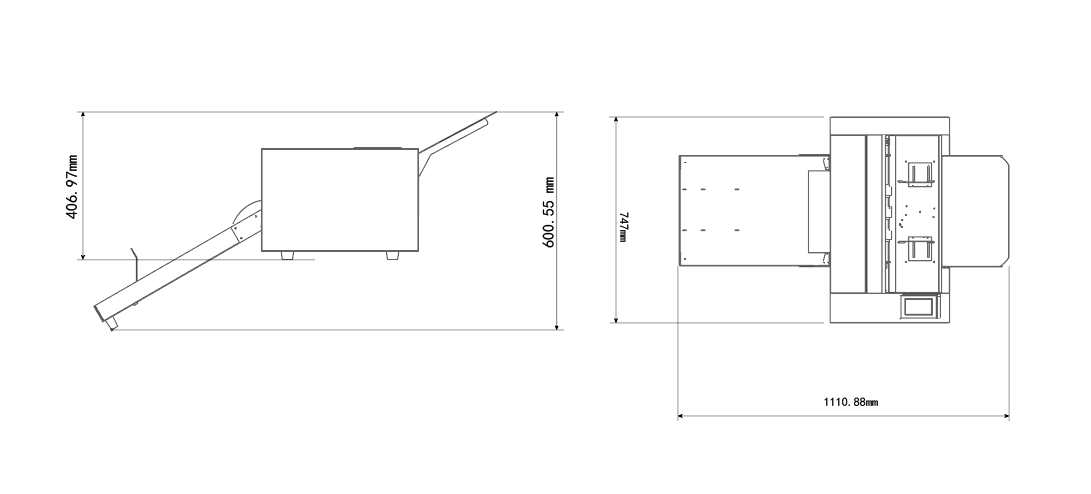

Dimensions
Applications
