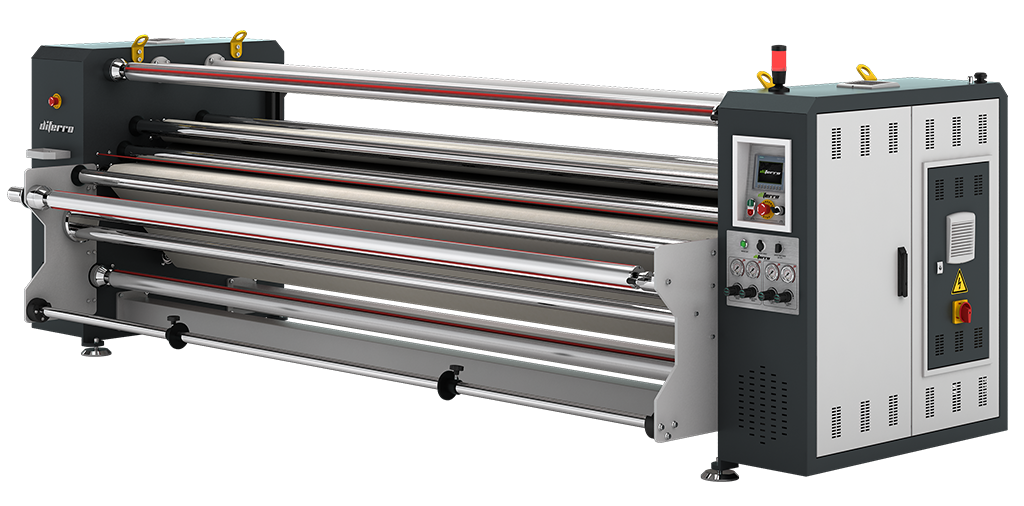

DM 33B400C

Product Information

Our “DM” Series target small-scale textile companies that work with fabric rolls and obliged to work with less capital and less production costs. Although it is mainly for roll to roll printing experience, it can also be used for other heat transfer operations.

OPERATION TYPES

  • Digital Paper Rolls to Rolls of Fabric

OTHER SCOPES OF USE

  • Film Lamination
  • Serigraphy Transfer Printing
  • Foil Printing

THE DRUM

The drum is made of ST44 drawn steel pipe and all standard models are finished with surface grinding. On request the drum surface can also be plated with either chrome or Teflon. Inside the drum is one single heating unit that consists of three pieces. The drum is filled with transfer heating oil that fills up 60% of the inner volume. The failsafe-switch mechanism helps balance the inner pressure, and will deactivate the machine should there be any issues regarding the gasses generated by heated oil so to avoid injury or damage. The heat sensor is placed on the surface of the drum, this enables more accurate readings and provides better print results. Maximum Working Temperature and Temperature Restrictions can be easily adjusted via the Touch-Screen Panel.

THE FELT BELT

All of our machines are equipped with 100% Nomex seamless industrial felt belts that are reinforced with Kevlar material in order to avoid stretching. The expected lifetime for the belt on this unit is between 3 & 5 years depending on use. In order to eliminate movement of the felt belt to either side the machine is built with an automated-felt centering mechanism. The felt tension and the felt centering system are both air-operated (Pneumatic). Should the compressor fail to supply the required air for the system, the machine halts and alerts the operator to prevent lasting damage to the belt.
 TOUCH-SCREEN PANEL
  • General control of the machine such as speed, temperature etc.
  • Meter Counter
  • Weekly Programming
  • Auto- Cooling
  • Touch-screen to Access various functions

MATERIAL INPUT / OUTPUT CONTROLS

Protection Paper Input       : Pneumatic Brake System Output    : Manually Adjusted Automatic Rewind
Digital Paper
  • Input       : Pneumatic Brake System
  • Output    : Manually Adjusted Automatic Rewind
Roll Fabric
  • Input       : Manually Adjusted Fabric Tension System
  • Output    : Potency Controlled Double Roll Rewind

Technical Specification


Heating System Heat transfer oil
Max. temperature 220
Average heating time 60-80 min
Average Cooling time 150 min
Power supply 380 VAC – 3 Ph 50/60 Hz
Air intake (bar) 5 – 8 bar
Electrical System PLC Control
Felt Tension System Pneumatic
Felt Control System Automatic
Drive Speed Control AC Inverter
Paper un-wind Re-wind Compressed Shaft
Weekly programming Yes
Automatic shut –down Yes
Safety 4 Emergency Buttons – Safety Wire
Software language English (optional)
Warranty 2 years Mechanical, 1 year Electrical (User Fault Exempted)


Optional accessories

1. Fabric Straighter Rod: it is a mechanism that ensures that certain types of fabric enter smoothly during entry into the machine.
2. Static preventing wire: static electricity generated on fabric or paper is not to harm the user.
3. Remote access module: it is a card module installed on the PLC. The machine is easily accessible remotely as long as it is installed
4. Air Shaft : it is used to fix the roll with air to prevent the roll papers balls from rotating
5. Pneumatic Crushing roll: for those who want to apply foil printing or extra printing to the product
6. External roll fabric rewind unit: it is for those who wish to continue with spare digital paper without stopping the machine immediately after the digital paper which is exhausted during printing.
7. Additional digital paper role: it is an ideal unit for those who want to control the cold and controlled roll fabrics
8. Chrome or Teflon plated drum: film lamination or interlining and so on. Ideal for those do the work. Such adhesive materials can be easily removed from the chrome cylinder.
9. UPS power supply: It is an important device for operating the machine up to low temperature in order to avoid damaging the felt on the machine during power outages.
10. Fabric Laying unit

Numeric values



DP SERIES
Machine Drum Diameter Drum Width Maximum Working Width Working Data Maximum Current Input Total Power Avarage Energy Consumption Drum Resistance Power Drum Engine Power Dimensions (Footprint with Table) Net Weight Dimensions of the Shipping Crate
Code mm inch mm inch mm m/min m/hour m2/hour Amp. Kw Kw Kw Kw Cm Kg Cm Kg
DP-19B400C 400 15.8″ 1900 74.8″ 1800 2.64 158.4 285 51,7 34 22,1 31,5 1,5 300x320x150 2250 325x225x200 2480
DP-22B400C 2200 85.6″ 2100 2.64 158.4 333 62,4 41 26,7 38,5 1,5 340x320x150 2750 365x225x200 3000
DP-26B400C 2600 102.3″ 2500 2.64 158.4 396 83,7 55 35,8 53 1,5 380x320x150 3250 405x225x200 3550
DP-33B400C 3300 129.9″ 3200 2.64 158.4 507 115,6 76 49,4 73 2,2 450x320x150 4125 475x225x200 4500
DP-19B600C 600 23.6″ 1900 74.8″ 1800 4.34 260.4 469 66,9 44 28,6 41,5 1,5 320x330x170 2900 345x235x220 3200
DP-22B600C 2200 85.6″ 2100 4.34 260.4 547 68,5 45 29,3 43 1,5 340x330x170 3200 365x235x220 3500
DP-26B600C 2600 102.3″ 2500 4.34 260.4 651 100,4 66 42,9 53 2,2 380x330x170 3770 405x235x220 4150
DP-33B600C 3300 129.9″ 3200 4.34 260.4 833 130,8 86 55,9 83 2,2 450x330x170 4800 475x235x220 5300
DP-19B1000C 1000 39.4″ 1900 74.8″ 1800 6.50 390 702 108,0 71 46,2 68 2,2 320x370x200 4200 345x270x250 4600
DP-22B1000C 2200 85.6″ 2100 6.50 390 819 118,6 78 50,7 75 2,2 340x370x200 4630 365x270x250 5000
DP-26B1000C 2600 102.3″ 2500 6.50 390 975 144,5 95 61,8 90 2,2 380x370x200 5450 405x270x250 5950
DP-33B1000C 3300 129.9″ 3200 6.50 390 1248 184,1 121 78,7 116 4 450x370x200 6900 475x270x250 7550
