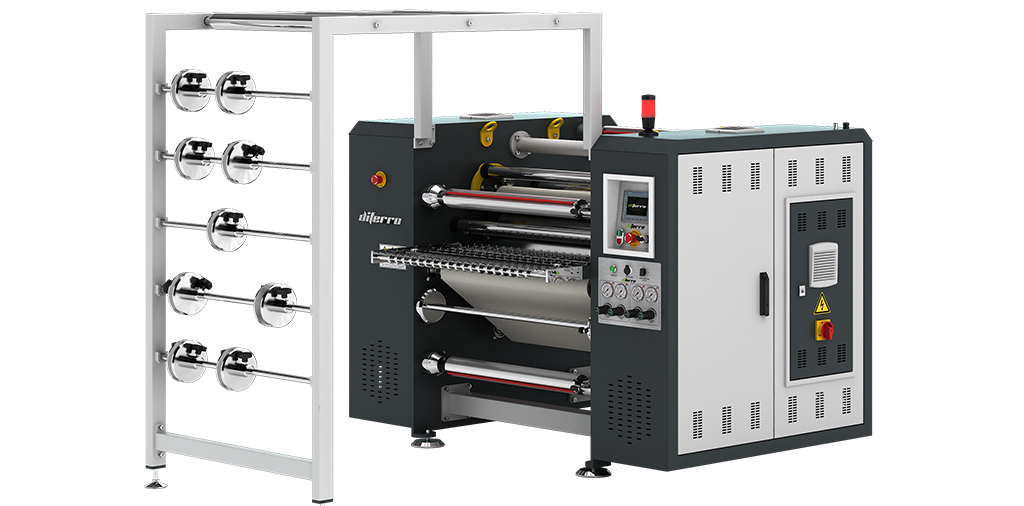

DR Series – Ribbon Transfer Printing Machine
OPERATION TYPES
- Digital Paper Rolls to Rolls of Fabric
KEY FEATURES
- Shadow Preventing Paper Seperator
- Fabric / Paper Scraper
DR Series
Product Information
Our latest “DR” Series is the perfect option for the production of ribbons and striped fabrics. Able to produce Impeccable vibrant prints on to rubber, ribbon, grosgrain, belt lining and bed sideband amongst many other narrow tape width materials. Areas of use include Home Textile, Advertisement Labelling, Under Clothing, Outerwear, Lanyards and multi-use decorative ribbon based applications
THE DRUM
The drum is made of ST44 drawn steel pipe and all standard models are finished with surface grinding. On request the drum surface can also be plated with either chrome or Teflon. Inside the drum is one single heating unit that consists of three pieces. The drum is filled with transfer heating oil that fills up 60% of the inner volume. The failsafe-switch mechanism helps balance the inner pressure, and will deactivate the machine should there be any issues regarding the gasses generated by heated oil so to avoid injury or damage. The heat sensor is placed on the surface of the drum, this enables more accurate readings and provides better print results. Maximum Working Temperature and Temperature Restrictions can be easily adjusted via the Touch-Screen Panel.
THE FELT BELT
All of our machines are equipped with 100% Nomex seamless industrial felt belts that are reinforced with Kevlar material in order to avoid stretching. The expected lifetime for the belt on this unit is between 3 & 5 years depending on use. In order to eliminate movement of the felt belt to either side the machine is built with an automated-felt centering mechanism. The felt tension and the felt centering system are both airoperated (Pneumatic). Should the compressor fail to supply the required air for the system, the machine halts and alerts the operator to prevent lasting damage to the belt.
TOUCH-SCREEN PANEL
- General control of the machine such as speed, temperature etc.
- Metre Counter
- Weekly Programming
- Auto- Cooling
- Touch-screen to Access various functions
MATERIAL INPUT / OUTPUT CONTROLS
Protection Paper
- Input : Pneumatic Brake System
- Output : Manually Adjusted Automatic Rewind
Digital Paper
- Input : Pneumatic Brake System
- Output : Manually Adjusted Automatic Rewind
Roll Fabric
- Input : Manually Adjusted Fabric Tension System
- Output : Potency controlled , oscillating from roll
Technical Specification
| Heating System | Heat transfer oil |
| Max. temperature | 220 |
| Average heating time | 80 min |
| Average Cooling time | 150 min |
| Power supply | 380 VAC – 3 Ph 50/60 Hz |
| Air intake (bar) | 5 – 8 bar |
| Electrical System | PLC Control |
| Felt Tension System | Pneumatic |
| Felt Control System | Automatic |
| Drive Speed Control | AC Inverter |
| Paper un-wind Re-wind | Compressed Shaft |
| Weekly programming | Yes |
| Automatic shut –down | Yes |
| Safety | 4 Emergency Buttons – Safety Wire |
| Software language | English (optional) |
| Warranty | 2 years Mechanical, 1 year Electrical (User Fault Exempted) |
Optional accessories
- Static preventing wire: static electricity generated on fabric or paper is not to harm the user.
- Remote access module: it is a card module installed on the PLC. The machine is easily accessible remotely as long as it is installed
- Air Shaft : it is used to fix the roll with air to prevent the roll papers balls from rotating
- Automatic rear Stripe Distribution: For those who want to put printed stripe fabrics into separate containers
- Chrome or Teflon plated drum: film lamination or interlining and so on. Ideal for those do the work. Such adhesive materials can be easily removed from the chrome cylinder.
- UPS power supply: it is an important device for operating the machine up tto low temperature in order to avoid damaging the felt on the machine during power outages.
Numeric values
DR SERIES |
||||||||||||||||||
| Machine | Drum Diameter | Drum Width | Maximum Working Width | Working Data | Maximum Current Input | Total Power | Avarage Energy Consumption | Drum Resistance Power | Drum Engine Power | Dimensions (Footprint with Table) | Net Weight | Dimensions of the Shipping Crate | ||||||
| Code | mm | inch | mm | inch | mm | m/min | m/hour | m2/hour | Amp. | Kw | Kw | Kw | Kw | Cm | Kg | Cm | Kg | |
| DR-05B320C | 320 | 12.6″ | 500 | 19.7″ | 450 | 4 | 240 | 108 | 10 | 6,5 | 4,225 | 5,5 | 0,75 | 145x255x185 | 620 | 170x185x210 | 690 | |
| DR-07B320C | 700 | 27.6″ | 650 | 4 | 240 | 156 | 14 | 9 | 5,85 | 8,0 | 0,75 | 165x255x186 | 770 | 190x185x210 | 850 | |||
