IECHO TK4S Large Format Cutting System
Best choice for large format material processing.
IECHO TK4S

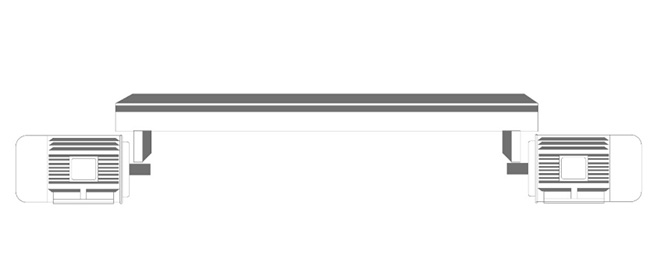

Feature: X axis two motors : for the extreme wide beam, use the two motors with balance technology, , make the transmission more stable and accurate.

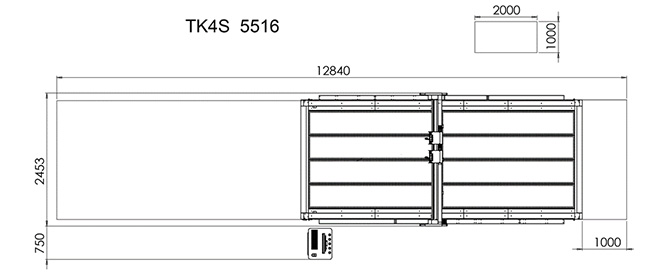

Large Format Cutting system: based on the standard size of TK4S can customize the machine according to customer’s special requirements and the maximum cutting width can reach 4900mm

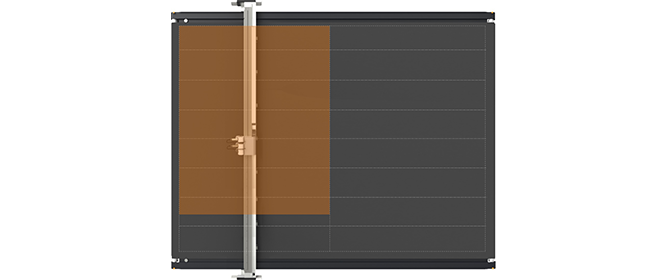

Flexible working area: the modularize working area can added according to customer’s requirements.

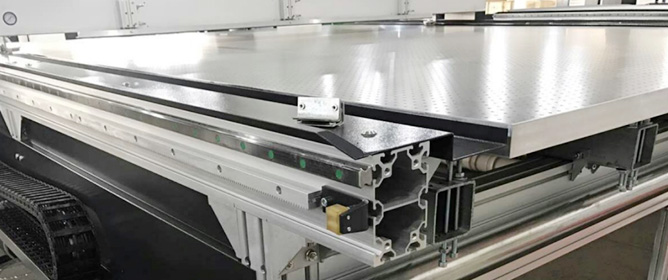

Aviation aluminum honeycomb panel
Application of aviation aluminum honeycomb panel, making the inside air of panel moves freely, ensures the stability of structure without influence of thermal expansion and contraction effect.
Meanwhile, mutually constrained dense sense respectively and averagely bear the force form the panel to ensure the high level flatness of the working table even of quite large size.

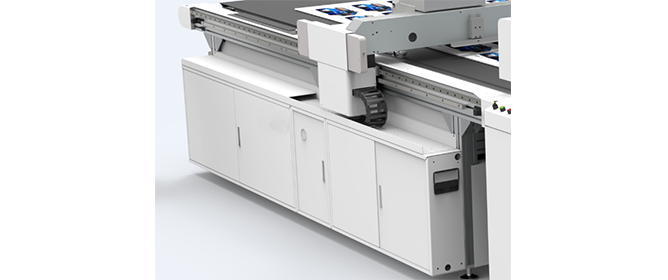

Side control box
the controlling boxes are designed at the side of the machine body, which make it easier to make maintenance.
Application
TK4S Large format cutting system provides best choice for multi-industries automatic processing, Its system can be precisely used for full cutting, half cutting, engraving, creasing, grooving and marking. Meanwhile, precise cutting performance could meet your large format requirement.
User-friendly operating system will show you a prefect processing result.
Universal cutting tool
IECHI UCT can perfectly cut materials with the thickness up to 5mm. Compared to other cutting tools, UCT is the most cost-effective one that allows for the fastest cutting speed and lowest maintenance cost. The protective sleeve equipped with spring ensures the cutting accuracy.
Creasing tool type
IECHO CTT is for creasing on the corrugated materials. A selection of creasing tools allows for perfect creasing. Coordinated with the cutting software, the tool can cut the corrugated materials along its structure or the reverse direction to have a finest creasing result, without any damage to the corrugated material’s surface.
V-Cutting Tool
Specialized for V-cut processing on corrugated materials, IECHO V-cut Tool can cu 0⁰, 15⁰, 22.5⁰, 30⁰ and 45 ⁰.
Rooting Tool RZ
With imported spindle, IECHO RZ has a rotating speed of 60000rpm. The router driven by hogh frequency motor can be applied for cutting hard materials with the maximum thickness of 20mm. IECHO RZ realiza the 24/7 working requirement. The customized cleaning device cleans up the production dust and debris. The air cooling system extends blade life.
POT
POT driven by compressed air, IECHO POT with 8mm stroke, is especially for cutting hard and compact materials. Equipped with different kinds of blades, the POT can make different process effect. The tool can cut the material up to 110mm by using specialized blades.
Kiss Cut Tool KCT
The kiss cut tool is mainly used for cutting vinyl materials. IECHO KCT makes it possible that the tool cuts through the top part of the material without any damage to the bottom part. It allows high cutting speed for material processing.
Electric Oscillating Tool
The Electrical Oscillating Tool is super suitable for cutting the material of medium density. Coordinated with various kinds of blades IECHO EOT is applied for cutting different materials and is able to cut 2mm arc.

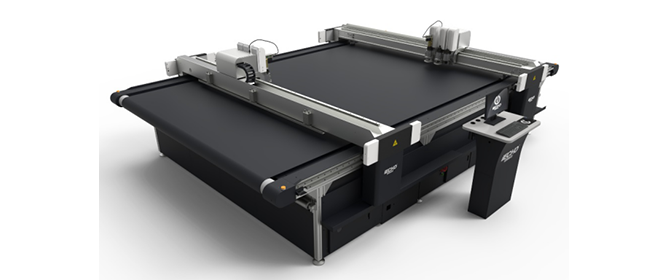

SYSTEM
- Dual beams cutting systems
- Automatic tool changer system
- Automatic knife initialization System
- IECHO motion control system
