DX Series

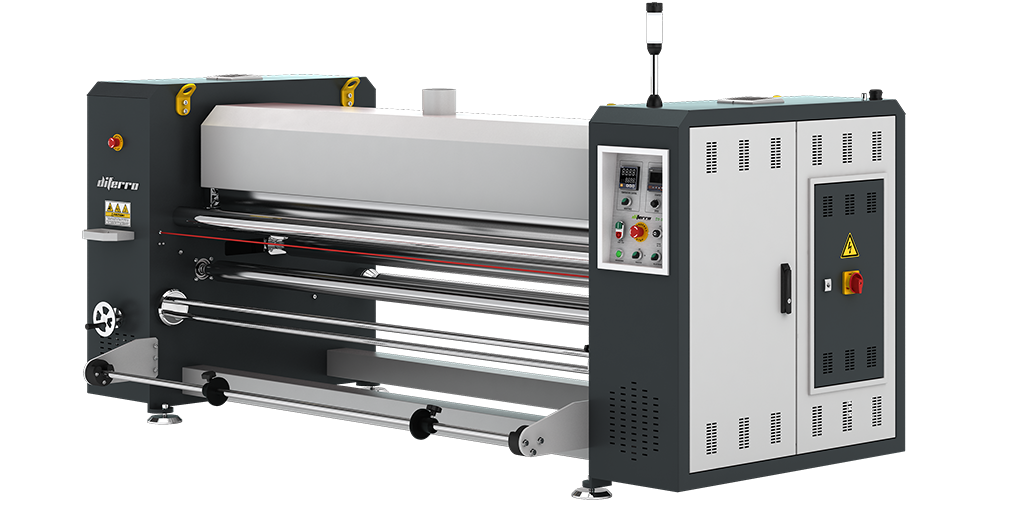

DX Series – Fabric Dye fixation Machine – DL

We have created a truly costeffective fixation machine that is built to last, offers multiple configuration choices and the performance required for an efficient high-speed print finishing experience.

Fixation is required to activate the colouring agents in the dyes and not only improves colour fastness, but also increases the vibrancy and impact of the designs when produced using a Reactive or Cotton Pigment Dye based digital printer. With features such as ironing and wrinkle fixer, the latest “DX” series will complete your finishing in a fast and efficient way.

CYLINDER FEATURE

The drum is made of ST44 drawn steel pipe and all standard models are finished with surface grinding. On request the drum surface can also be plated with either chrome or Teflon. Inside the drum is one single heating unit that consists of three pieces. The drum is filled with transfer heating oil that fills up 60% of the inner volume. The failsafe-switch mechanism helps balance the inner pressure, and will deactivate the machine should there be any issues regarding the gasses generated by heated oil so to avoid injury or damage. The heat sensor is placed on the surface of the drum, this enables more accurate readings and provides better print results. Maximum Working Temperature and Temperature Restrictions can be easily adjusted via the Touch-Screen Panel.
